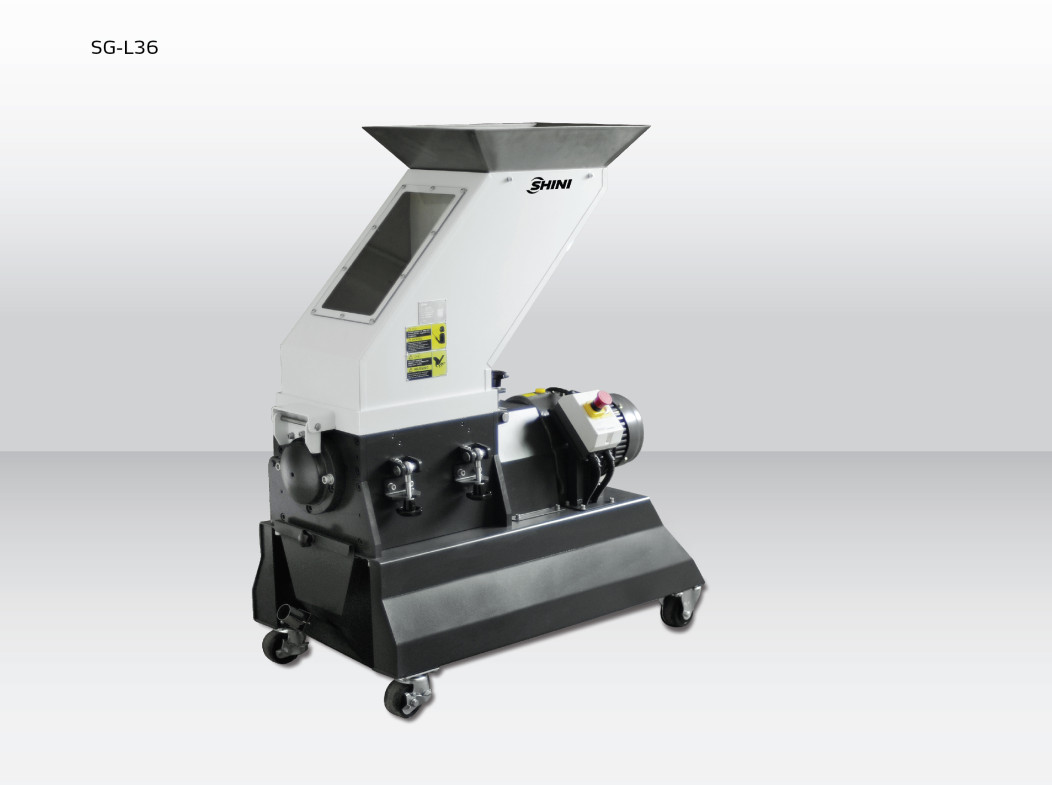

Screenless Granulator SG-L

Features

1. Adopt TECO brand gear motor that features stable performance, long service life and large torque.

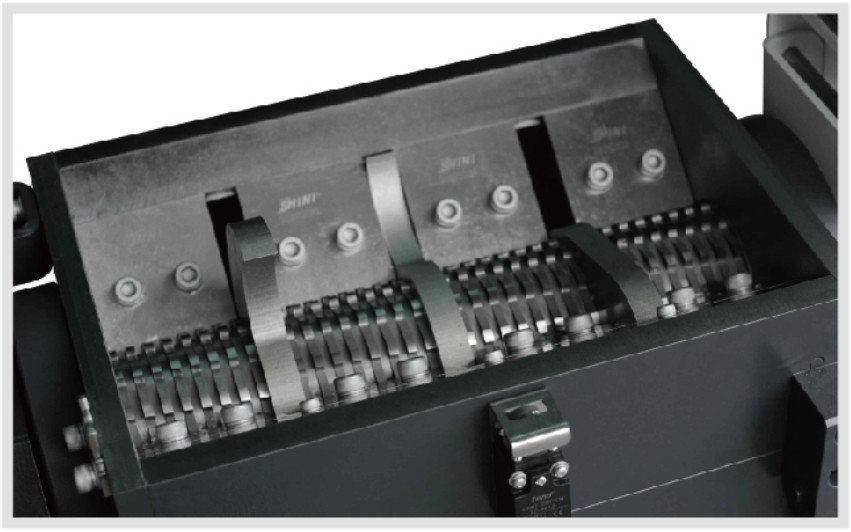

2. Break large spurs into smaller pieces, and teeth cutter bites the materials into the desired size with less dust and ready to be reused with virgin materials.
3. Screenless screen, even particle granules with little dust content.
4. Compact design, small footprint for fast cleaning and maintenance.
5. Feed box with visual window, and double-layer sound proof are made of stainless steel.
6. Gear motor is connected with the main shaft with the coupling, making it easy to replace cutters and gear motor.


Application

SG-L Screenless Granulator is applicable to granulating hard long or strong flexible sprues for instant recycling and a few rejects. It features small size, low speed and wear, and super silence, with low speed structure, and particle granules of little dust. Quick and easy cleaning method to clean residues from the cutting chamber in just a few simple steps. Simple control mode and operability is user-friendly that makes it easy to operate. Besides, multiple options are available to meet different production processes and specific demands.
Options

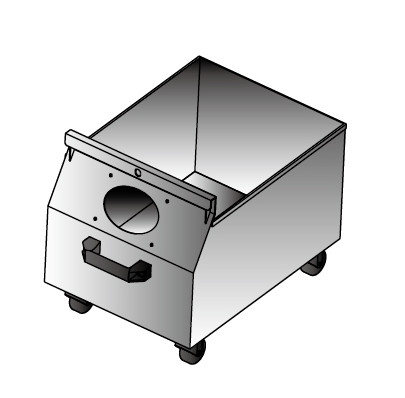

Manual collection bin
The manual collection bin is convenient for regrind recycling and storing.

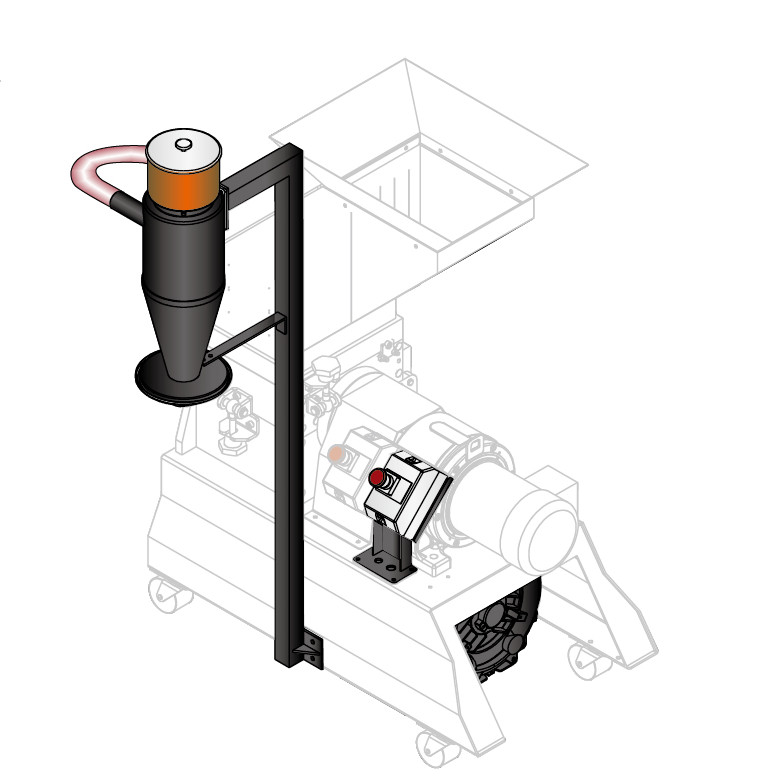

Regrind Conveying Via Blower& Cyclone (PC type)
This device utilizes loading blower to convey regrind into the cyclone dust collector to separate the regrind from the air and then the regrind will fall into the material storage hopper.


On the basis of standard cutter 5mm, cutter 4mm or 6mm is provided for option.

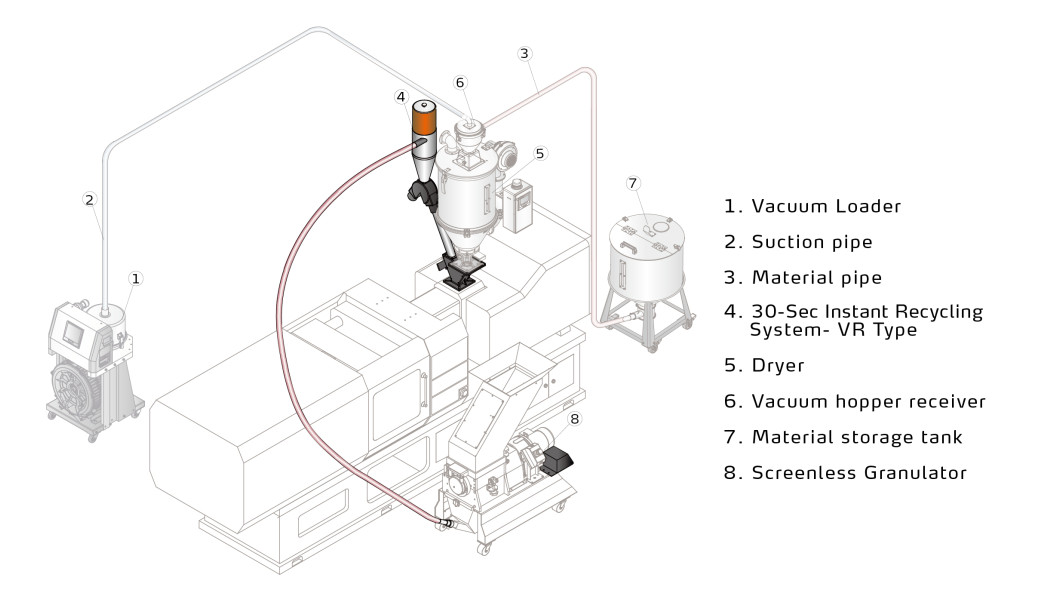

30-Sec Instant Recycling System- VR Type
The 30-sec. instant recycling system utilizes the high-pressure blower to blow the regrinds in the material storage tank to the proportional mixer and reuse the regrinds after mixing, so that the sprues will not have physical properties and color changes due to oxidation and humidification, thus improving the products quality.


30-Sec Instant Recycling System- PR Type
The 30-sec. instant recycling system utilizes the high-pressure blower to blow the regrinds in the material storage tank to the proportional mixer and reuse the regrinds after mixing, so that the sprues will not have physical properties and color changes due to oxidation and humidification, thus improving the products quality.
